Description

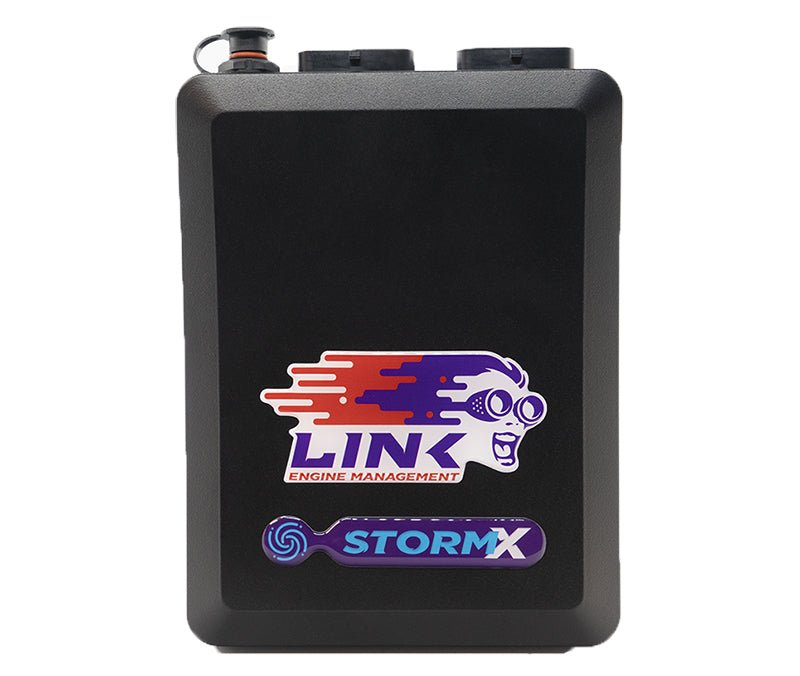

LINK G4X StormX from Link Engine Management. Genuine Link wire-in standalone ECU.
Specifications
- Engine capacity: Up to 8 cylinders or 4 rotors, sequential injection and direct spark
- Drives: 8 injection, 8 ignition, 8 auxiliary (unused drives can be extra aux)
- Inputs: 8 digital, 3 temperature, 8 analog, 2 trigger, 2 knock
- Knock: Onboard control for two sensors, no external amplifier
- Boost: Open or closed loop, up to 3 switchable tables
- VVT: Up to 4 closed-loop cams
- Communications: 1 CAN bus, USB (at least 8x faster than G4+)
- Data logging: 512 MB, up to 250 channels
- Size: 170 x 130 x 44 mm
- Weight: 680 g
- Connectors: Two 34-pin waterproof
- In the box: ECU, mounting bracket, instructions, stickers
Key Points
- Mid-range G4X wire-in ECU with built-in trigger oscilloscope, stepper idle control and rotary oil-pump control
- Includes antilag, launch and full gear-shift control
- Requires A and B looms or A and B connector kits (not supplied)
- For traction control or e-throttle see the XtremeX or FuryX
Part of our Link Engine Management range. Contact us if you need help choosing the right ECU or supporting hardware for your build.
