Description

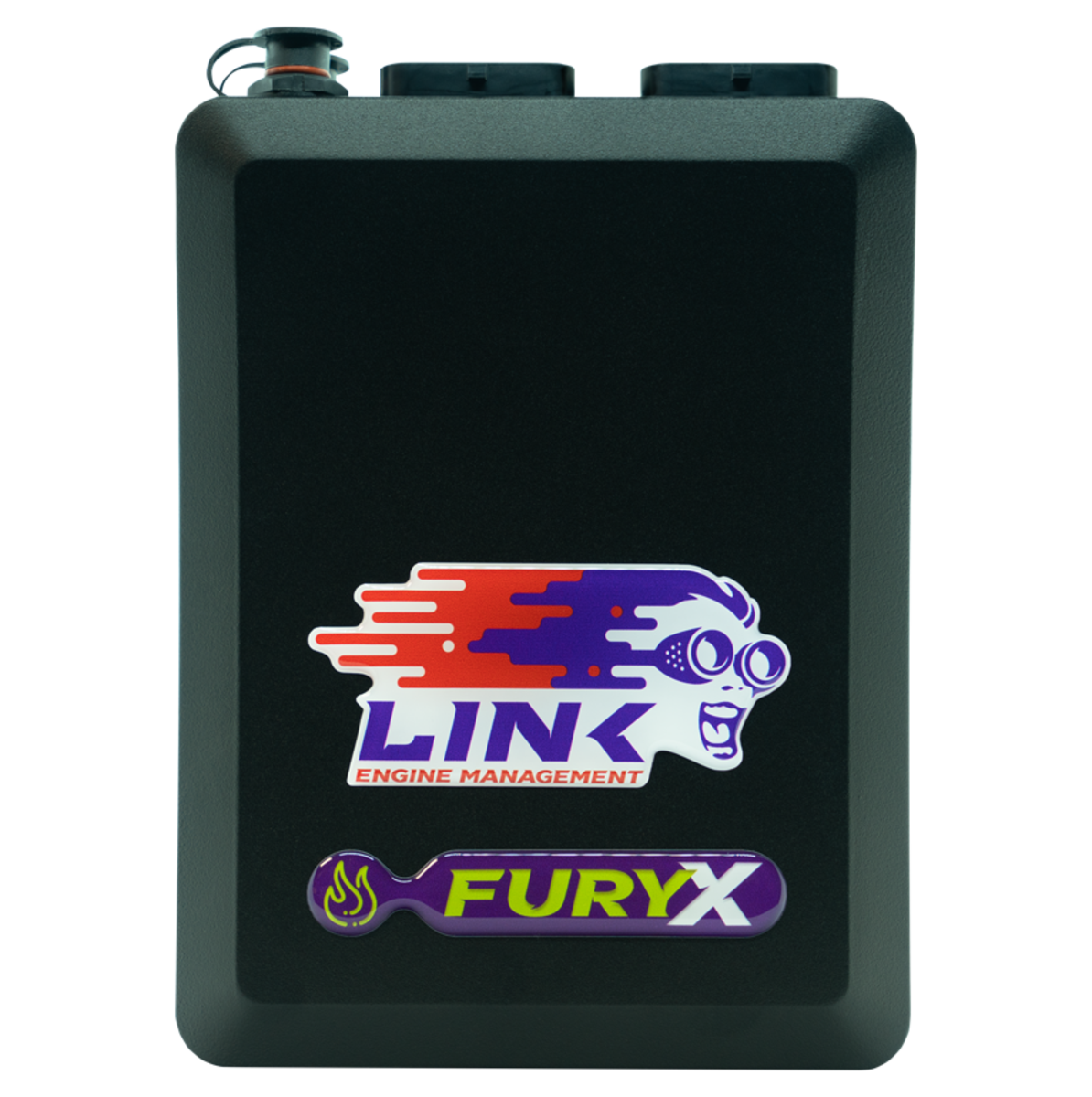

LINK G4X FuryX from Link Engine Management. Genuine Link wire-in standalone ECU.
Specifications
- Engine capacity: Up to 6 cylinders or 3 rotors, sequential injection and direct spark
- Drives: 8 injection, 6 ignition, 10 auxiliary (unused drives can be extra aux)
- Inputs: 8-10 digital, 4 temperature, 9 analog, 2 trigger, 2 knock, 1 LSU 4.9 wideband
- Wideband: Onboard digital wideband lambda controller
- Sensor supplies: +5V and +8V
- Communications: 2 CAN buses, RS232 serial, USB tuning
- Data logging: 512 MB
- Size: 185 x 130 x 40 mm (without looms)
- Weight: 680 g
- In the box: ECU, USB tuning cable, mounting bracket, quick-start guide, stickers
Key Points
- Premium G4X wire-in ECU, like the XtremeX but with onboard wideband control
- Requires A and B looms or A and B connector kits (not supplied)
- Second CAN bus uses the DI 9 and DI 10 pins
Part of our Link Engine Management range. Contact us if you need help choosing the right ECU or supporting hardware for your build.
