Description

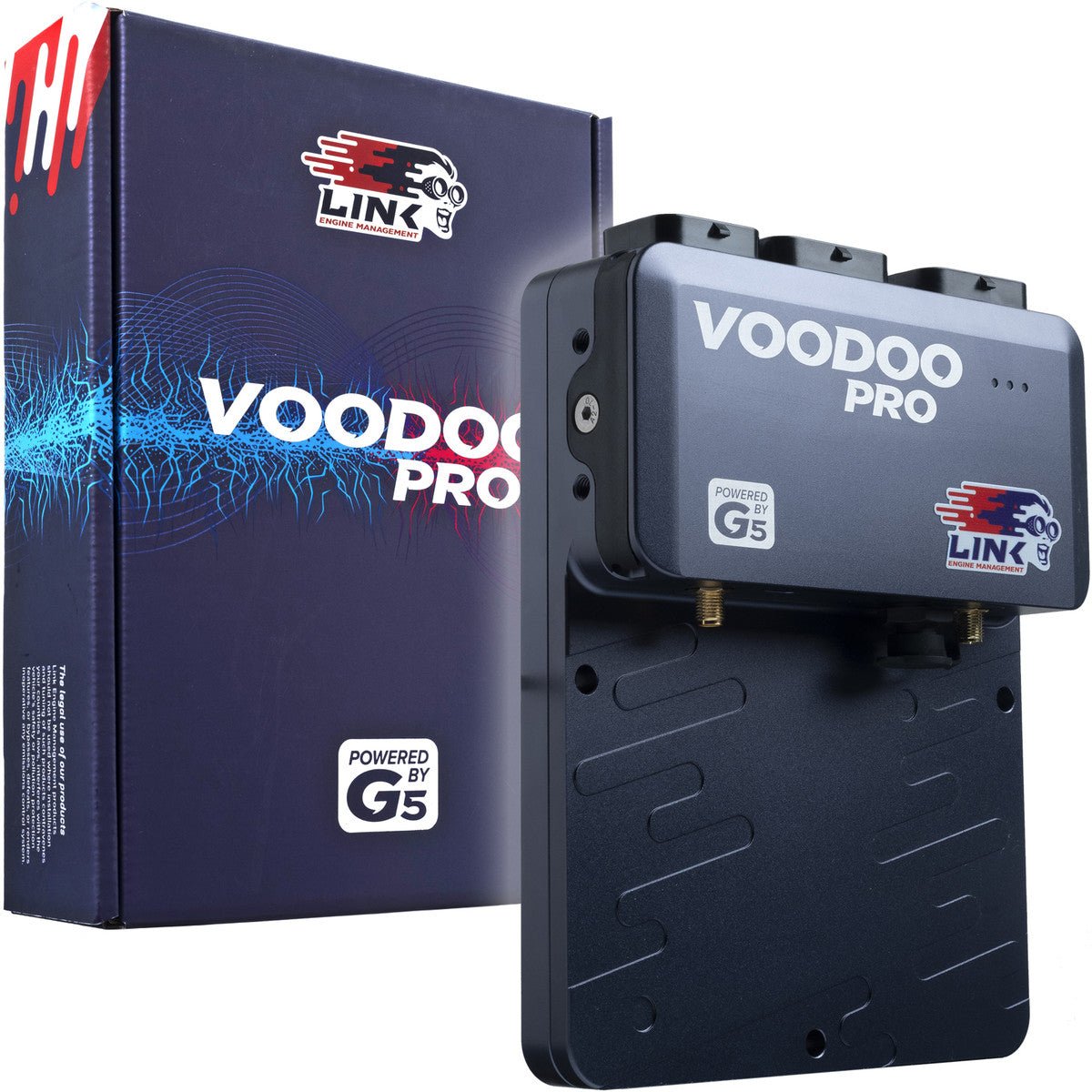

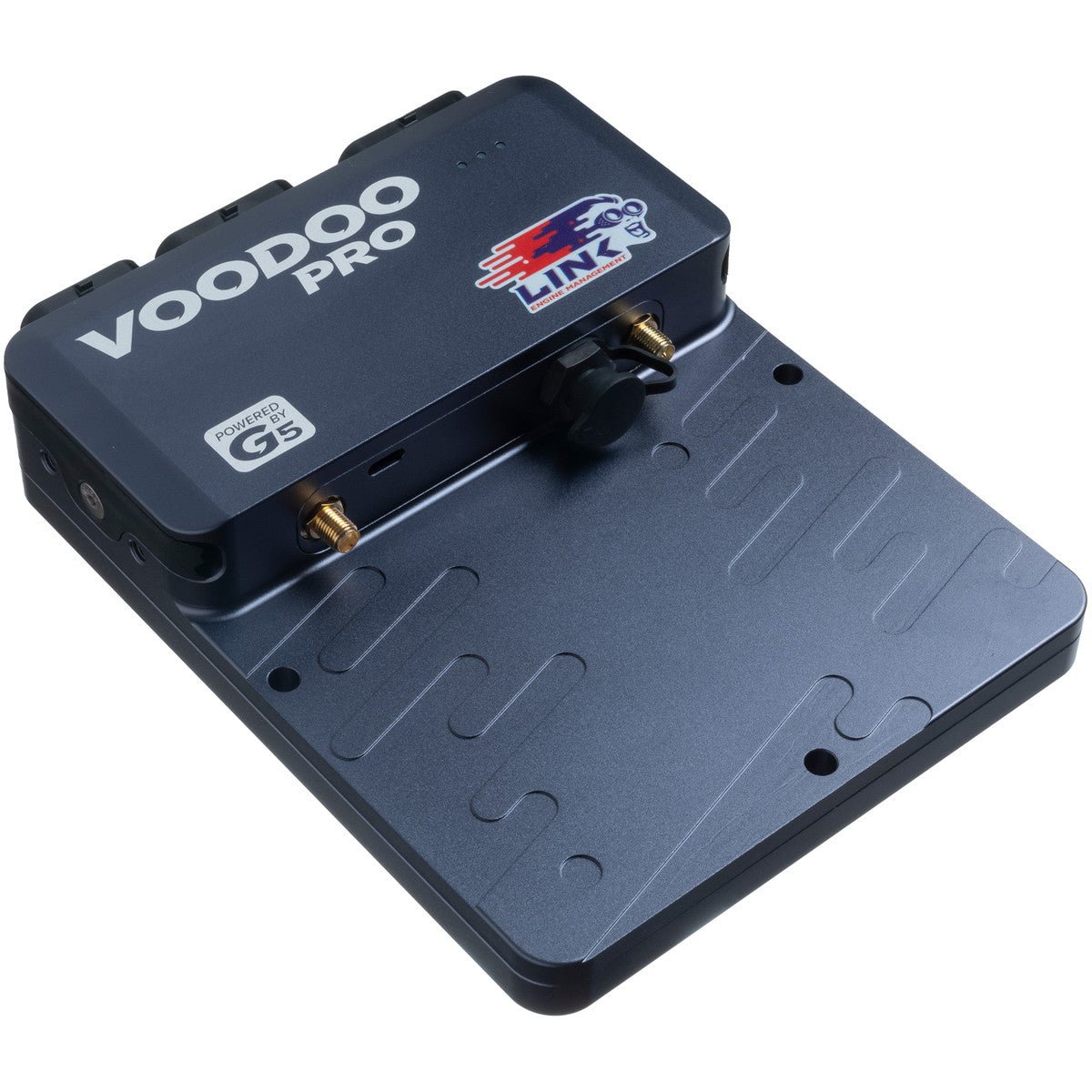

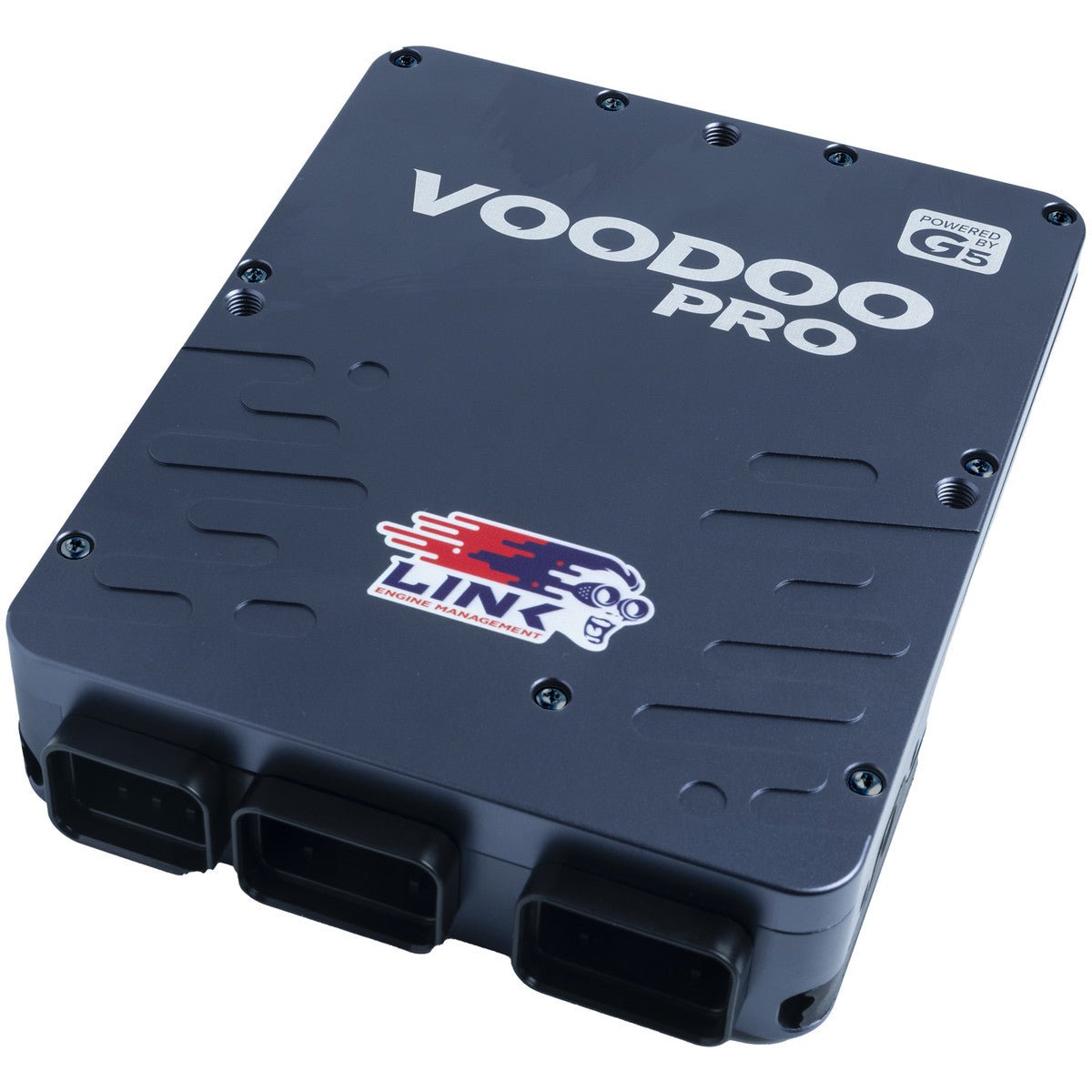

Link- G5 Voodoo Pro from Link Engine Management. Genuine Link wire-in standalone ECU.
Specifications
- Drives: 12 injection, 8 ignition, 4 multi-purpose (24 total)
- Engine capacity: Up to 12 cylinders or 6 rotors sequential with direct spark; 8 cylinders staged with direct spark
- Direct injection: Up to 12 DI drives via external OEM or aftermarket driver box
- Inputs: 14 analog, 10 digital, 4 temperature, dual knock, 2 trigger
- Auxiliary: Up to 30 auxiliary pins (4-cylinder sequential setup)
- Wideband: Dual onboard digital wideband lambda controllers
- E-throttle: Dual, with solid-state throttle disconnect relays
- Communications: USB-C, built-in WiFi, dual CAN, GPS up to 50 Hz
- Size: 177.1 x 137.3 mm, 15.5-40.2 mm tall
- Weight: 795 g

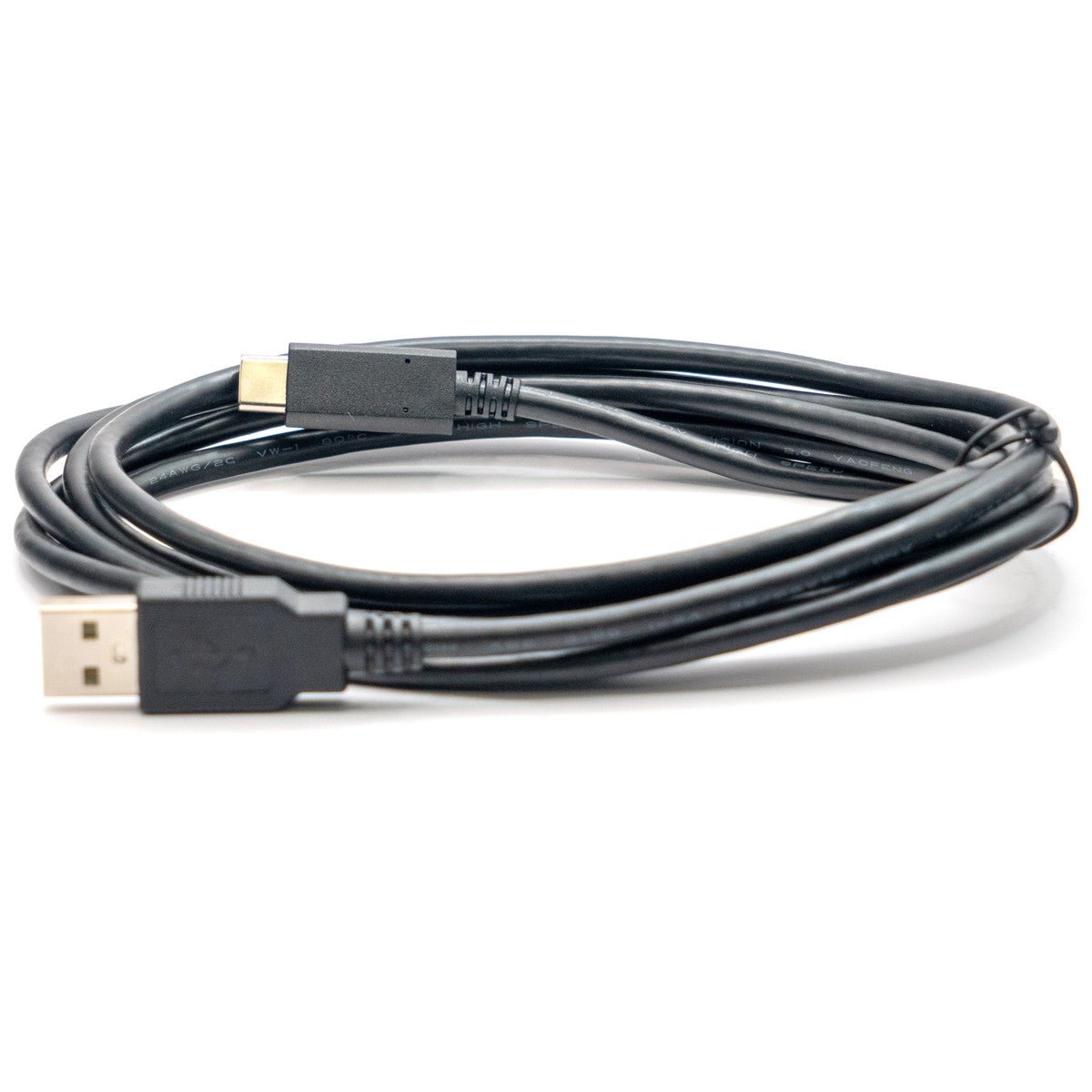

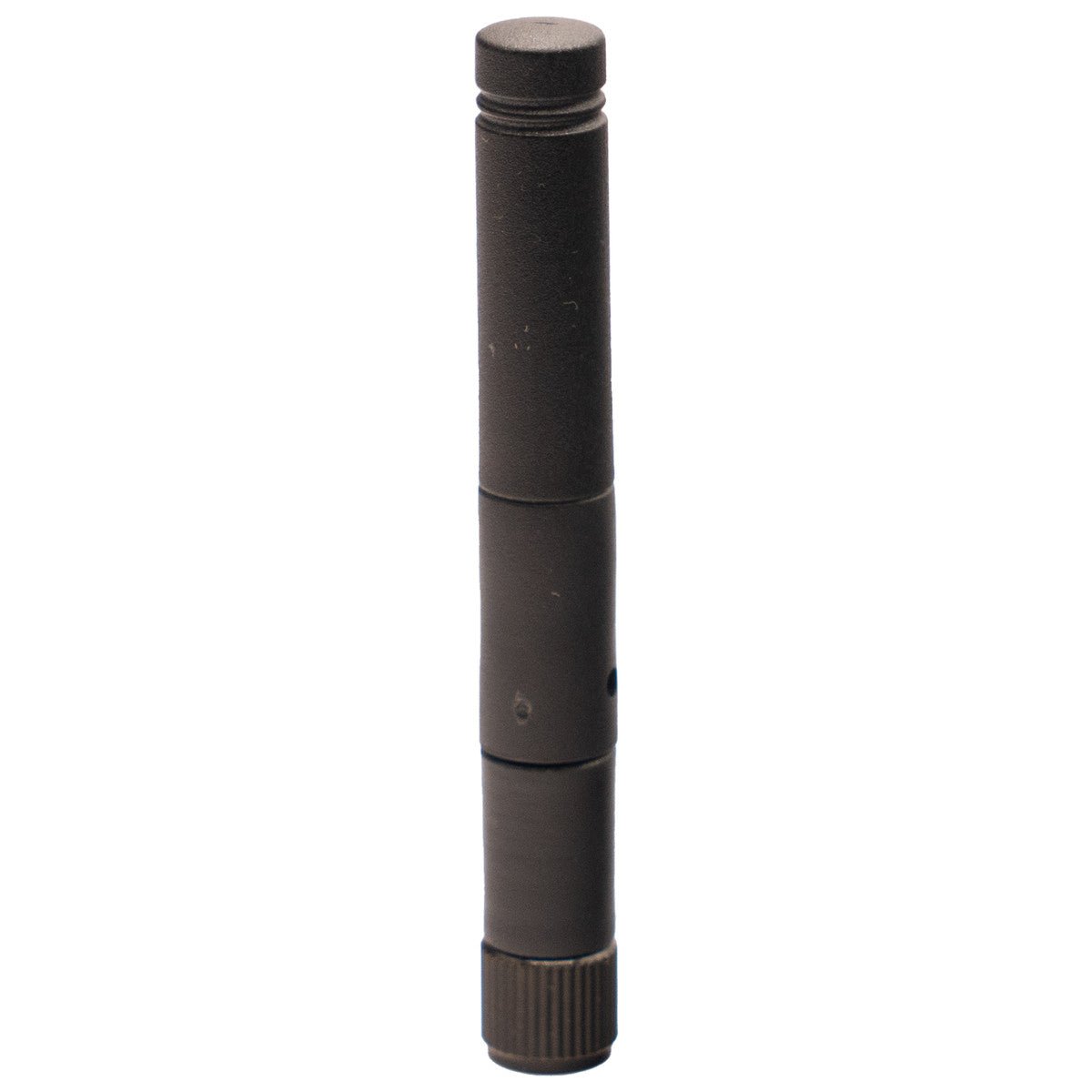

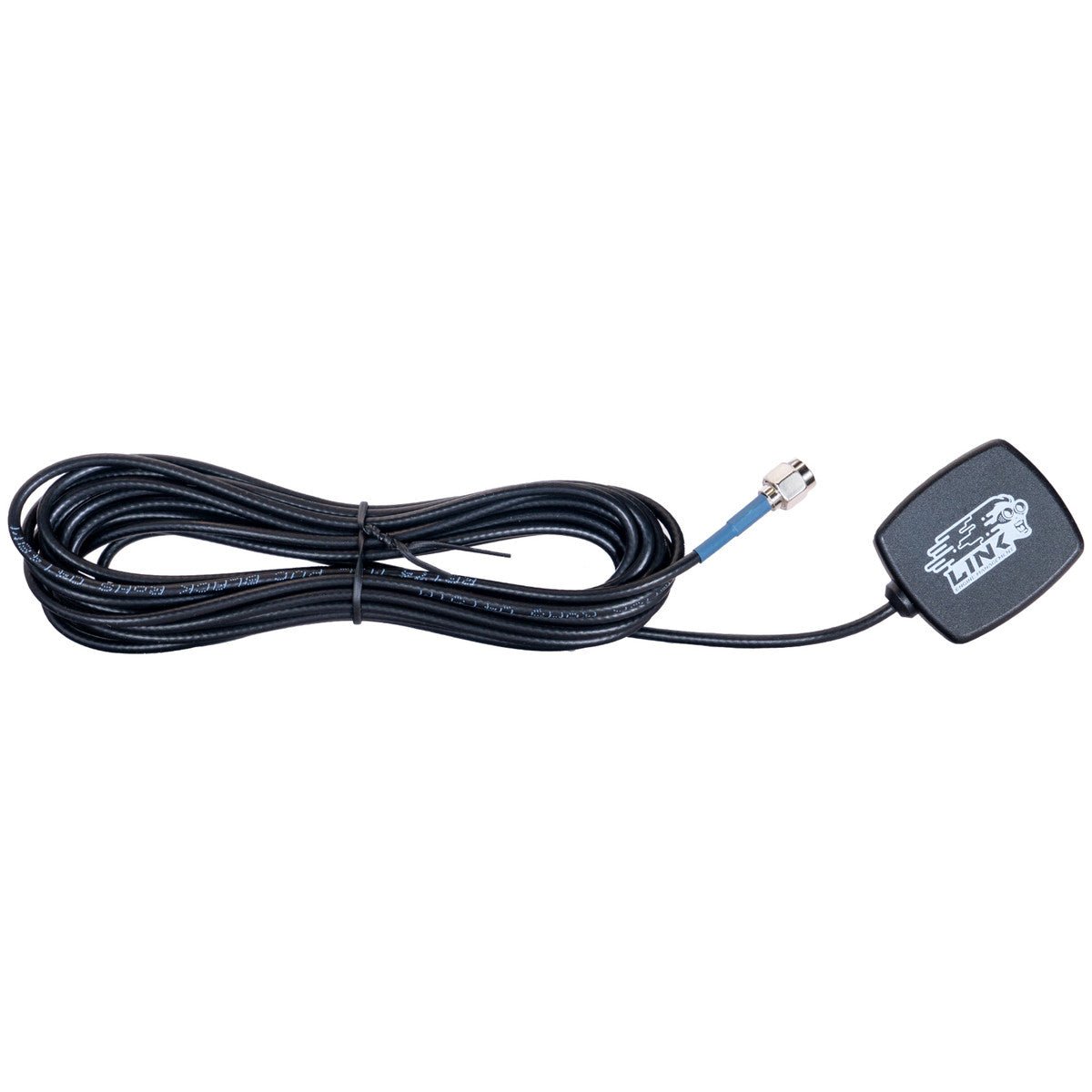

- In the box: ECU, USB-C cable, WiFi antenna, 4 m GPS antenna, dust covers, quick-start guide, I/O table, stickers
Key Points
- Requires A, B and E connector kits (not supplied)
- Runs on PCLink, same software as G4X; G4X maps can be loaded
- Dual microcontrollers; custom Link CAN files
- Built for professional-level motorsport
Part of our Link Engine Management range. Contact us if you need help choosing the right ECU or supporting hardware for your build.
