Description

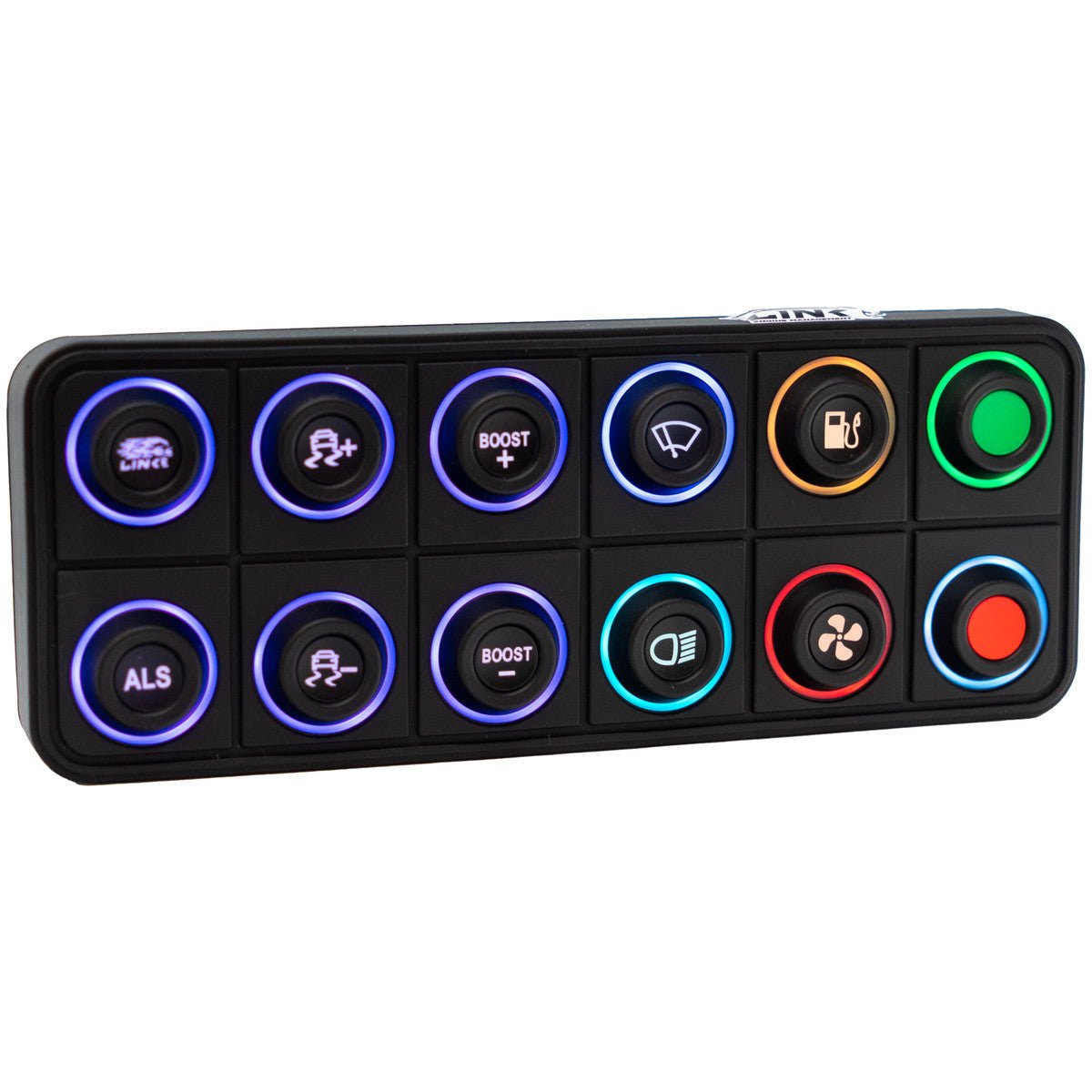

Link CAN Keypad 12 button from Link Engine Management. Genuine Link CAN-bus device for Link ECUs.
Specifications
- Configuration: CAN-configured in G4X PCLink (v6.22+): backlight, per-button RGB ring colour, flashing, momentary/latched/toggle modes
- Button inserts: Interchangeable 15 mm inserts (sold separately; Link logo insert included)
- Rating: IP67/IP69K dust and water proof, -40 to +70 C, UVB 400 h, ASTM B117 salt spray
- Switch life: 3 million operations
- Connector: DTM4 for CAN and power (mating kit included)
- CANopen node ID: 0x15 (21), default 1000 kbit/s
Key Points
- Compatible with all G4X ECUs
- Ships with empty button positions: choose and buy inserts separately
- Suitable for inside or outside mounting: street, track and off-road
Part of our Link Engine Management range. Contact us if you need help choosing the right ECU or supporting hardware for your build.
